Product Introduction

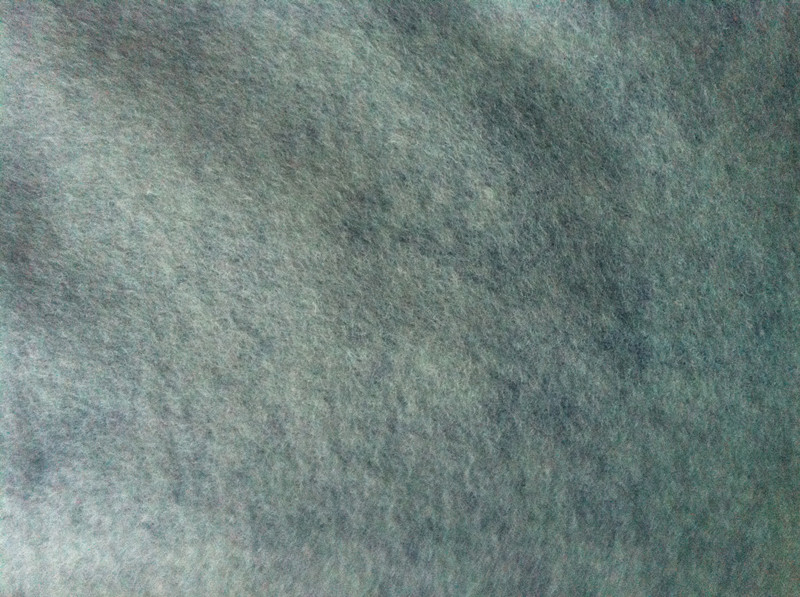

It is made of randomly yet evenly
distributed chopped strands fiber of50mmlength bonded with Powder/Emulsion binder or stitched by polyester thread.
Emulsion Binder CSM is used in hand lay up applications in general moulding. It
is suitable for use with polyester resin. It is ideal for applications such as
fiberglass boats, construction …
Powder binder CSM has good mould ability and conform slightly better to
complicated shapes than emulsion bound mats. They are recommended for use in
chemical applications. It is compatible with vinyl ester and polyester resins,
light weight CSM like 80/100/120/150g/m2
mainly used for car headliner.
Stitching CSM has high tensile strength and is recommended for Pultrusion
process.
Identification:
Example: HS CSMP 450-104
PTCSMP: our company code
450:nominal mass per unit area (g/m2)
104:roll width (cm)
Typical Type
|
Type |
Binder |
Weight (g/m2) |
Standard Width
(cm) |
|
HSCSMP |
Powder |
80,100,120,150,225,300,380 |
97,104,125,127, |
|
HS CSME |
Emulsion |
80,100,120,150,225,300,380 |
97,104,125,127, |
|
HSCSMS |
Stitching by Polyester thread |
300,380,450 |
160,127 |
Remarks:
Slit width like4”,6”,8”,10”,12”is available.
Packaging:
Each roll is wound on paper tube (3”-4”Dia.) with plastic film and packed in individual cardboard box.
With pallet packing or without pallet packing upon customer’s request.
Storage:
Unless otherwise specified, it should be stored in a dry, cool and rainproof area; it is recommended that the room temperature and humidity should be always maintained at 35-65% respectively.
